The pulse width modulation (PWM) circuits on the GPIO board can be used to switch ground to external devices, either ON/OFF or in varying duty cycles. While other circuits, such as the general purpose outputs, could be used for PWM control, these dedicated PWM circuits have much heavier duty transistor, and a substantial heat sink, and so are suitable for higher load devices (such as PWM idle valves, PWM transmission solenoids, etc.)

PWM works by switching the 12 volt ground to the injector on and off very rapidly (in about 0.000059 seconds!). The ratio of the "on" time to the "off" time determines the current through the injectors. However, the easiest way to think of the PWM% is as a percentage of the supply voltage, so 50% PWM on a 14 volt supply becomes effectively 7 volts on average, 28% would be 4 volts, etc.

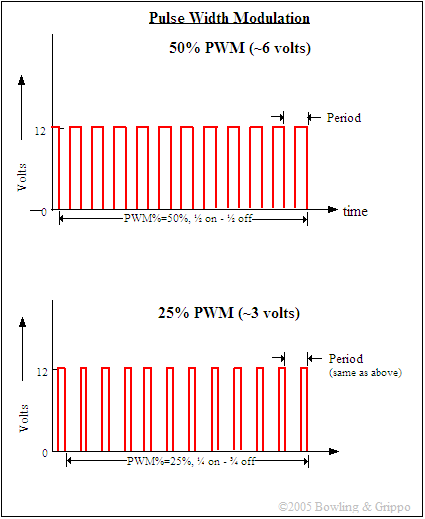

Remember that pulse width and PWM% are two different things. Pulse width is the total duration of the signal whereas PWM% is the ratio of 'on-time' to 'off-time' within the pulse. So in the above illustration, the pulse width for both is the same, but the PWM% for the first is 50%, while for the second it is 25%.

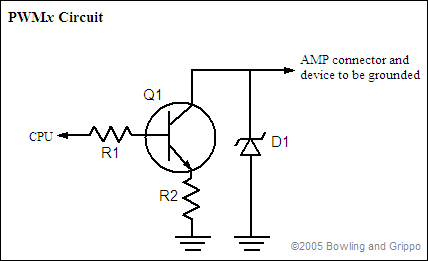

The default transistor for the PWMx circuits is the TIP120. This is a robust transistor in a TO220 package capable of flowing up to 4 Amps. The heat sink mounting allows for high current flows while keeping the transistor temperature under control.

Component	Default Values	Marking	Notes
R1	1.0 K	brown-black-red	current limit from processor
R2	1.0	black-brown-black	for 'scoping current flow, can be jumpered
Q1	TIP120 (NPN)
D1	22 Volt Zener diode		to shunt flyback spikes to ground

To use the PWMx output circuits, you supply power (12 Volts) to the device from a switched (and fused) source, and you ground the device thorough the GPIO PWMx circuit.
